Flow limiters

Discontinued product! Please ask for the Flow Control alternatives!

Flow limiters

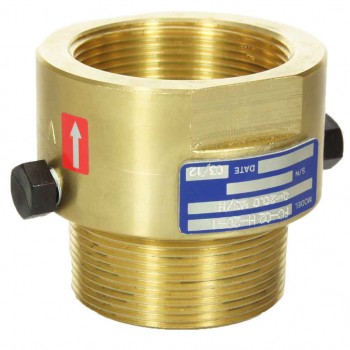

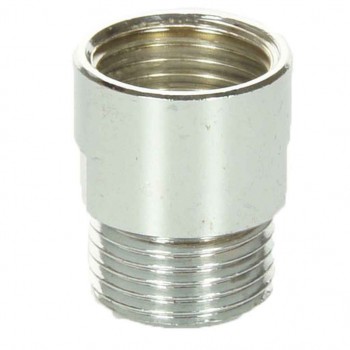

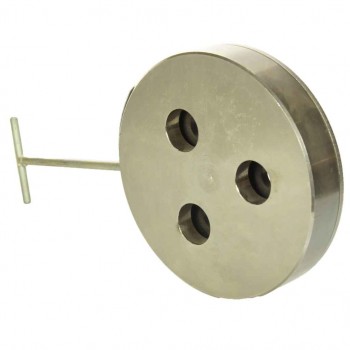

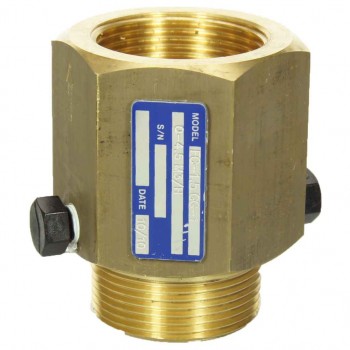

The Bermad flow limiters come in the form of an adapter or a metal flange with, according to size, an appropriate number of modulating orifices. These openings are made of a special synthetic rubber composition and have been calibrated to guarantee a constant capacity. By combining several modulating orifices, which have a known capacity, it is possible to obtain the exact capacity required.

Product features:

  • Simple construction – no moving mechanical parts
  • Accurate flow control – superior to ±15%
  • Maintenance-free
  • Easy to install
  • Adjusting the capacity by simply changing the modulating orifices
  • The flow limiter can be installed horizontally as well as vertically.
  • Strong non-corrosive structure.

Working:

The flow limiter maintains a constant capacity regardless of changing system pressures and/or demand. This effect is achieved by the contractions in the passage of the calibrated modulating orifice under the influence of the differential pressure on the orifices.
