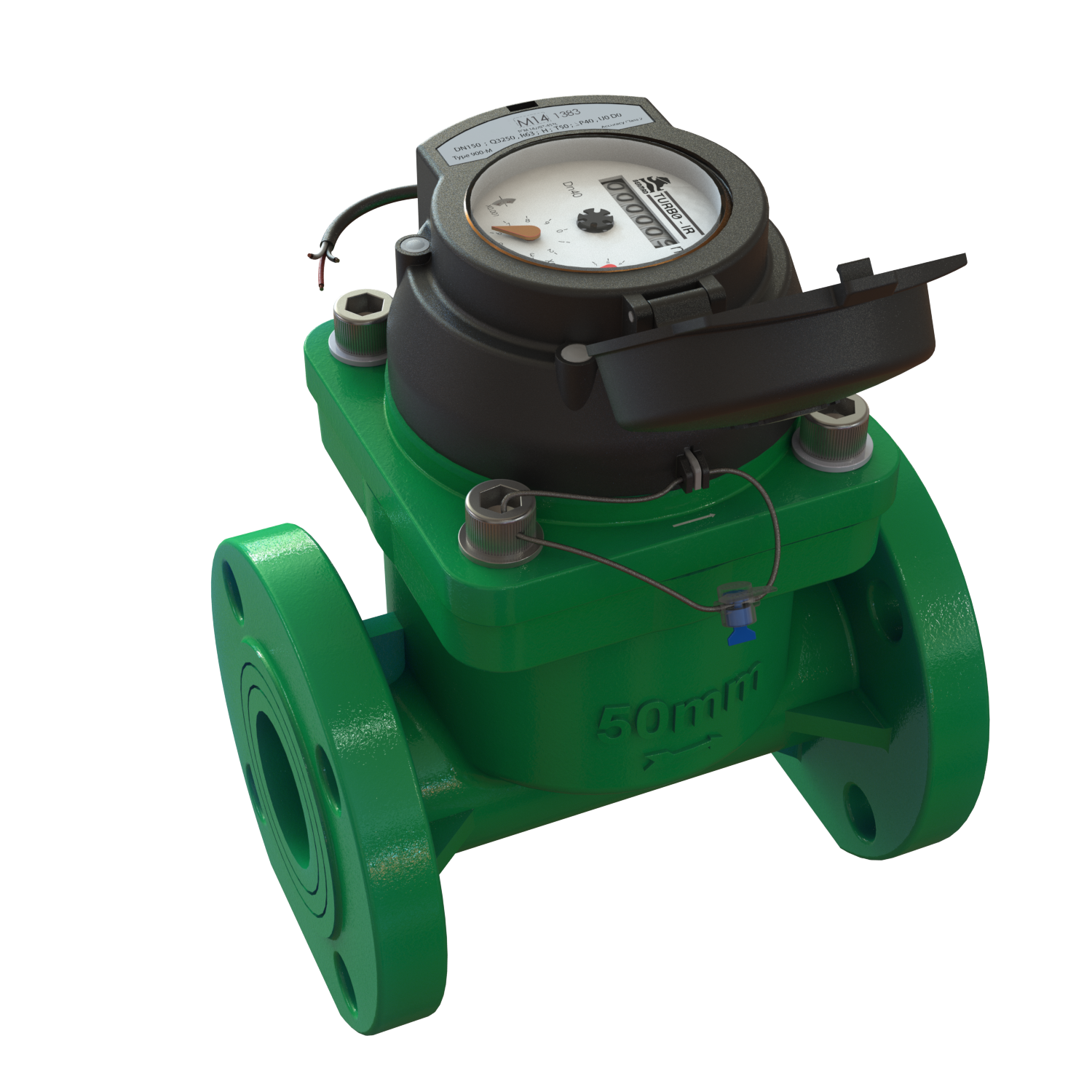

Turbo-IR water meter

Turbo-IR water meter

Bermad Turbo IR water meters have been specially designed for applications in clean water and water containing dirt up to a certain percentage. This percentage depends upon the type of dirt in the water. The Turbo IR meter uses a multi-bladed plastic impeller fitted at the top of the water flow for measuring. In this position, the disruption due to solids in the water is minimised, meaning that an accurate measurement is possible. The Turbo IR water meter is a wear-resistant and easy-to-maintain product.

Product features:

  • Magnetically coupled drive fully separated from the flowing water
  • Dry register, airtight and turning 360°
  • Low pressure loss
  • Interchangeable register

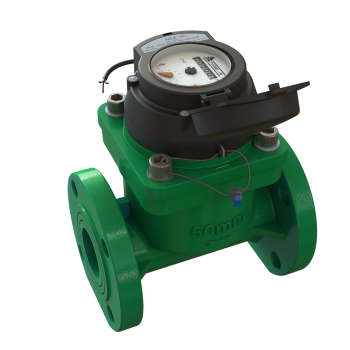

Mechanical register Turbo-IR-M:

  • Analogous counters
  • Flow display
  • Leak indicator
  • 1 pulse (reed switch)

Options:

  • Without pulse (reed switch)
